COULTERTM SA 3100 SERIES
COULTERTM SA-PREPTM BET OUTGASSER
COULTERTM SA-VIEWTM Software
Surface Area and Pore Size Analyzers Method Gas Adsorption Analysis Measurement Range 0.01 - over 2000 m²/g (surface area)
2 - 200 nm (pore size diameter)Typical Applications Catalysts, Adsorbents, Carbon,
Minerals, Metals powders,
Pharmaceuticals and other porous
or non-porous materials.The SA 3100 and SA 3100 Plus are complete systems with integrated outgassing stations and vacuum pump.
They are highly accurate. They feature continuous saturation pressure measurement, have a minimum manifold volume to enhance sensitivity, and they perform a multipoint helium free space measurement, to improve repeatability and accuracy.
Rapid Analysis is achieved through the use of optimized sample holders, greater sensitivity allowing a smaller sample volume and a novel learn function.
They provide flexible output.
Data may be printed in full detail or in summary form:
- Single and Multipoint BET data and Langmuir surface area data
- Complete adsorption and desorption isotherm capability
- B.J.H. pore size analysis
- MP and T-Plot methods
A simple to use ‘touch screen’ interface gives reliable operation and provides instant feedback with a real time graphic display of the isotherm or data.
Sample results are saved automatically to a diskette, or to a PC Network compatible location.

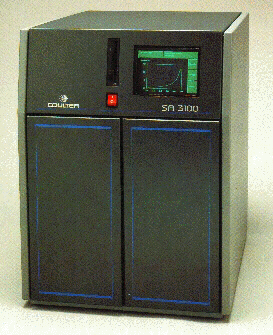

COULTER SA 3100
The provides single and multipoint surface area analysis, multigas capability for surface area and full adsorption capability.COULTER SA 3100 PLUS
Provides all the features of the SA 3100 and in addition measures desorption isotherms.SA-VIEW Software
This utility program has a Windows interface for an external PC and provides data reprinting, archiving, graphic overlays and other features.Controls, Standards and Accessories
